Precision tubing for garage doors and lock-cylinder components
The technical challenge of doors and locks
Precision is the security
A lock cylinder is a mechanism of minimal tolerances: if the tubular component is not calibrated, the cylinder turns with play, jams or loses reliability. In a garage door, if the torsion shaft or the roller have play, the door tips, drifts in the guide or seizes. In both cases, a failure of precision is a failure of security.
The mechanism works thousands of cycles
A garage door goes up and down daily for years; a lock is operated thousands of times. The tubing acting as shaft or guide has to hold its tolerance and its behaviour throughout its service life, without premature wear from friction or accumulated play.
Partly on show, partly out in the weather
The exposed hardware of the door carries a finish (chrome, zinc or paint) that protects it and makes it look right. That finish only comes out clean if the starting tubing is free of porosity.
Applications where you will find us
Garage doors: shafts, rollers and guides
- Torsion and rotation shafts The tubing acts as the shaft the spring works on or the mechanism turns on. With the OPTIM range we control outer diameter, bore and wall thickness simultaneously, with an internal weld bead ≤ 0.15 mm: the shaft works with no play and no parasitic friction.
- Rollers and guide wheels The door runs on rollers that travel along the rail. The same principle of precision: a roller with a calibrated shaft does not squeak, does not drift and does not seize under load.
- Guides and rails Thin walls with the formability to profile the rail without cracking or ovalisation.

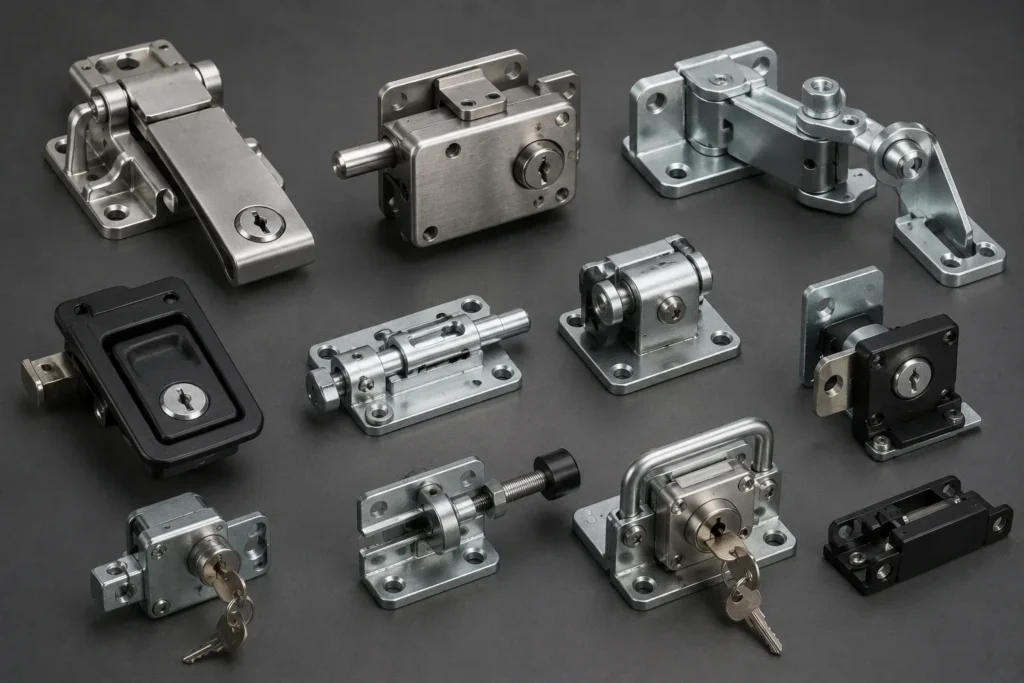

Lock cylinders and lock components
- Diameter calibrated to a hundredth of a millimetre In a lock cylinder, the fit between parts determines whether the cylinder turns smoothly and securely or jams. We control the outer diameter and bore with the precision the mechanism demands.
- Controlled internal weld bead The OPTIM range keeps the internal weld bead at ≤ 0.15 mm, so the bore is left clear and the elements of the mechanism seat and slide without obstruction.
- Very small diameters Lock components fall in the range where the market for calibrated tubing all but disappears, and where Delmàs has been working for decades.

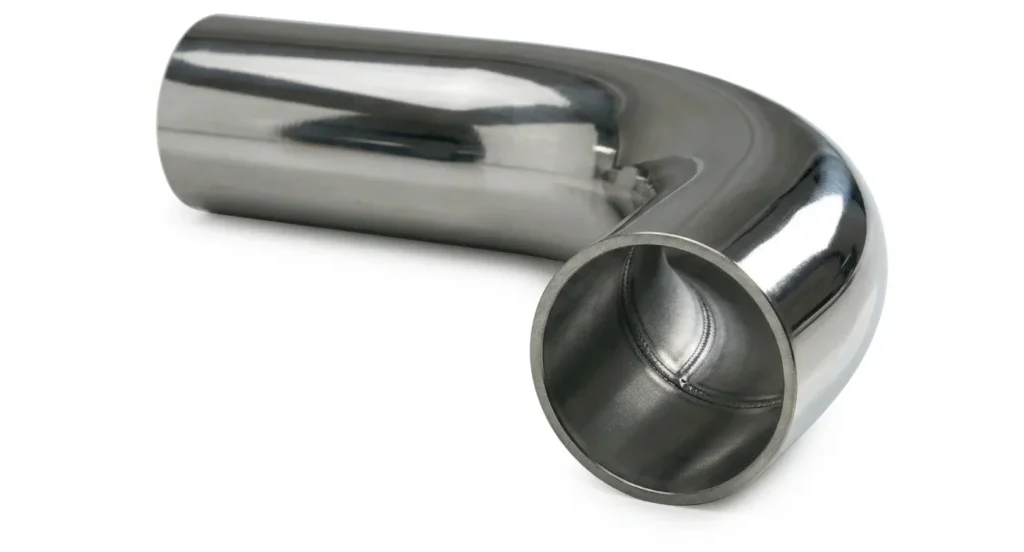

Structure and exposed parts
- Bright surface ready for finishing The PREMIUM range leaves the factory with a bright, non-porous outer surface, suitable for direct chrome, zinc, brass plating or painting, with no prior polishing stage.
- Non-circular profiles Square, oval or flat oval section to EN 10305-5, when the design calls for it.
The right range for Doors
OPTIMShafts, rollers, guides and lock-cylinder components. Simultaneous control of bore and outer diameter, weld bead ≤ 0.15 mm
PREMIUMHandles, levers and exposed parts. Bright outer surface for electroplating or direct painting
PRECISETorsion shafts and larger-diameter sections that demand a finished bore. Mirror bore
Supply and service
- Coil format or cut-to-lengthCoil supply eliminates end-of-bar scrap on automated lines. Cut-to-length delivers the tubing at exactly the length specified in the drawing, ready to load into the machine.
- Tubing transformed into a component ready to assembleWhen the customer needs it, we do not deliver tubing: we deliver the finished part. Cutting, bending, punching, end forming, threading, machining and surface finishing —to drawing— so that the component arrives ready to assemble. One manufacturer instead of several suppliers.
- Documentary certification with every deliveryWe issue certification to EN 10204-2.2 (declaration of conformity with non-specific inspection results) or EN 10204-3.1 (inspection certificate with specific results for the batch supplied), depending on what the customer's quality system requires. In-house laboratory at the plant.
Why door and lock manufacturers trust Delmàs
A family-owned business in La Roca del Vallès, specialising exclusively in small-diameter welded and calibrated steel tubing (⌀ 3–25 mm).
The diameter calibrated to a hundredth of a millimetre is what makes a shaft work without play and a cylinder turn without jamming, cycle after cycle.
Below 8 mm —the territory of lock components— the supply of precision calibrated tubing all but disappears. That is where we have been working for decades.
Manufacturing powered 100% by renewable energy since 2006, with two photovoltaic self-consumption installations at the plant.
Questions we hear every week
Why does a garage door jam or tip?
Usually because of play in the shaft or the rollers. If the tubing acting as the shaft retains a pronounced internal weld bead, or the diameter is not calibrated, play and friction appear. The OPTIM range keeps the internal weld bead at ≤ 0.15 mm and calibrates the diameter to a hundredth of a millimetre.
Do you manufacture the tubing for lock-cylinder components?
We manufacture small-diameter calibrated tubing with the dimensional control a lock mechanism demands. Tell us the exact component and its function and we will propose the right size and range.
Does the tubing arrive ready for chrome plating or painting?
Yes. The PREMIUM range is manufactured with a bright, non-porous outer surface, suitable for direct chrome, zinc, brass plating or painting, with no prior polishing stage.
Do you manufacture non-standard sizes?
Yes, that is our speciality. We do not standardise: if your mechanism needs 6.2 mm or 8.25 mm, we manufacture that size, controlled to a hundredth of a millimetre.
Do you deliver the finished component or just the tubing?
Both. As well as tubing in coil or cut to length, we transform the tubing into a finished component ready to assemble: cut, bent, punched, machined and with whatever surface finish the drawing requires.
